Cable only or on Metal Reel

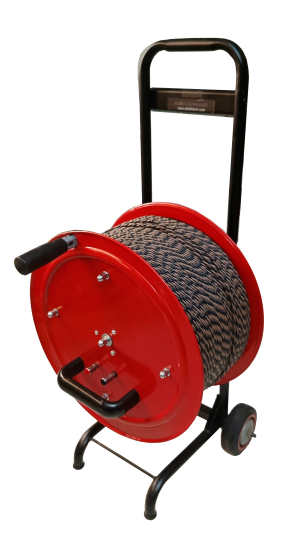

Firing/ Demolition Cable
Firing Cables used to initiate an electro explosive device must be safe and reliable. The cable has flexible PVC sheath and is of high strength to qualify for field environment of the demolition or EOD operational task. The cable can also be offered on the reel drum and as per the specialized requirements of the client. The cable can be use with our Shrike Electronic Exploder EES-665 (four channel), AZ-12 (single channel) or with Remote Detonation system RDS-6722 and -6725.
Key Features
- Cable meets the requirements of UK DEF STAN 61-12 part 17.
- Twisted Black and tan cable or any other color on user requirement.
- Customizable Drum Options as per the length of the cable required. Provided with foldable Crank Handle and pair of spring-loaded Binding posts with Guard.
- Reel from 50 meters to 500 meters are offered. As per the cable length, different reels are provided for one-man carry, one-man trolley, and two-man carry.
- Brake Mechanism on reel.
Cable types & specifications
Conductor | Finished Cable | ||||||
No. of Strands | Strand Dia mm | Insulation Thickness mm | Dia. mm | O/Dia. each core mm | Dia over sheath. mm | Conductor DC Resistance @ 20°C | Approx Weight Kg/Km |
24 | 0.2 | 0.65 | 2.44 nom | Lower Limit 2.39 Upper Limit 2.49 | 4.9 nom | ≤ 35 Ω/km | 28 |
16 | 0.2 | 0.6 nom | 2.13 Nom | Lower Limit 2.08 Upper Limit 2.23 | 4.3 nom | ≤ 50 Ω/km | 26 |
07 | 0.2 | 0.3 Nom | 1.20 nom | Lower Limit 1.17 Upper Limit 1.23 | 2.4 nom | ≤ 100 Ω/km | 15 |
Spring Loaded Binding Post
Reel/ Drum type
Ordering information
To order with part no ECR-SS-LLL-DDD
SS- No of cable strands
LLL- Length in meters
DDD- Drum type
