Field proven product from Khursheed

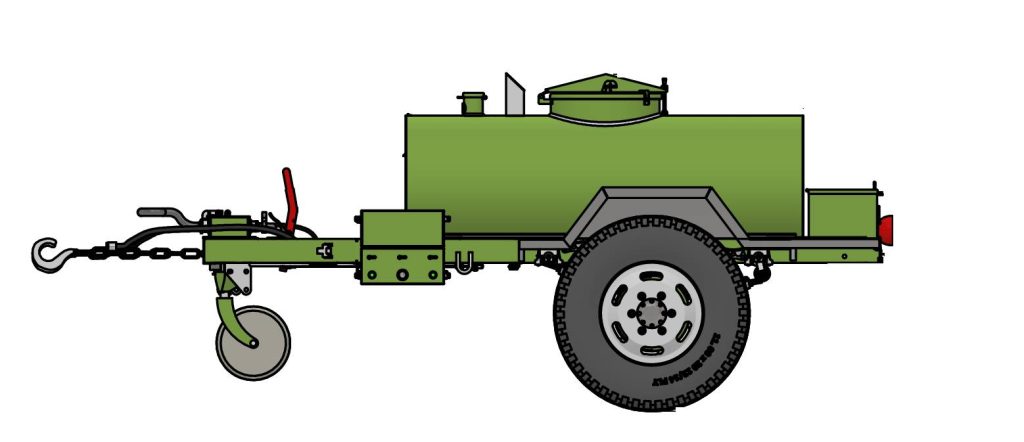

400 Gallons Water Buffalo trailer PKM-149
The military 400 gallon Water trailer is a 1½ Ton, 2 Wheeled trailer distributes drinking water to field operating units. With steel body M149 version, Stainless steel tank M-149A and Fiberglass tank M-149A1 are also offered. These Trailers also referred to as Water Buffalo are designed to carry potable or non-potable water on either highway or cross-country routes. It can be towed by a 2½ Ton Truck or equal with allowable speeds of 80 km/h highway and 48 km/h cross-country.
- A 24 Volts electrical System capable of operations under standard and blackout modes.
- Manually operated parking brakes used to secure the trailer when stopped or parked.
- Aqua Safe coatings are performed to keep the water clean and biology growth.
- Two wheel single axle with leaf spring suspension to absorb road shock.
- Dual-line air/hydraulics brake system which receives air pressure from towing vehicle
- Inter vehicular Cable and Safety Chains.
- Rugged and Maintenance friendly features.
- Supplied with or without Aluminium body Manual hand pump

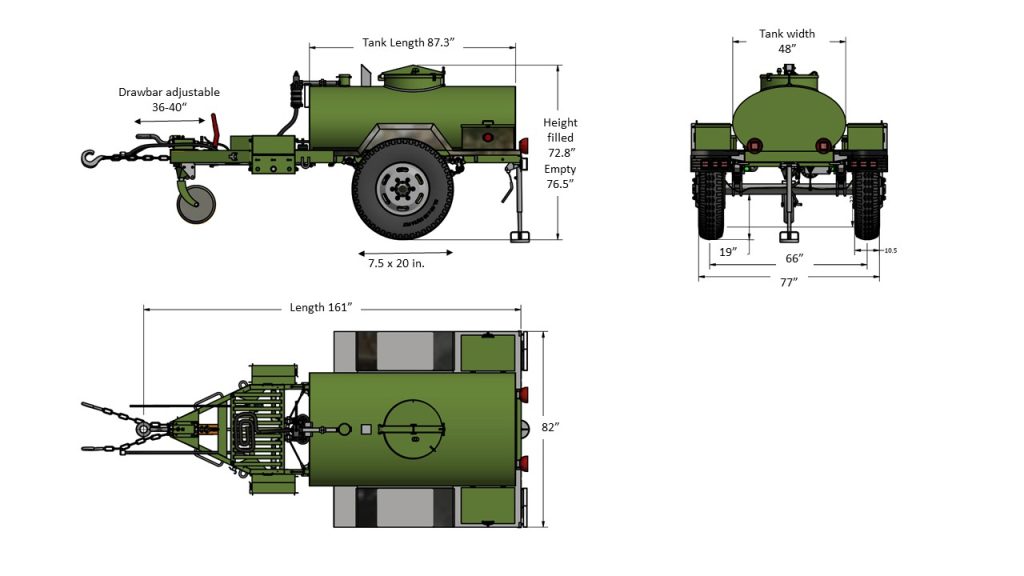

Specifications
| Tank Capacity | 400 gal (1,514 I) |
| Ground Clearance | 17 in (43 cm) |
| Drawbar Ring (Adjustable) | 36-40 in. (91-102 cm) |
| Payload Maximum | 3,335 lb (1,514 kg) |
| Empty Net Weight | 2,900 lb (1,317 kg) |
| Height (to Top of Manhole Cover) | |
| Full | 76.5 in. (194.3 cm) |
| Empty | 79.3 in. (201.4 cm) |
| Length | 161. 5 in. (410.2 cm) |
| Width | 80.3 in. (204 cm) |
Operational Components
| Release Handle | Caster assembly in up or down position. |
| Hand crank | Gearbox operations to raise or lower the adjustable caster assembly. |
| Ground Pad Handle | Raises or lowers the adjustable caster assembly. |
| Handbrake Levers | Activate handbrakes when the trailer is stopped or parked |
| Latch | Locking mechanism to secure the manhole cover closed. |
| Manhole Cover | For filling, cleaning, and the inspections. |
| Rear Faucet | Used to dispense water from the tank when the temperature is below freezing. |
| Faucets | Draw water from the tank. |
| Manifold Valve | Directs water to the faucets. |
| Hand Pump | Aluminium body hand pump option. |
NSN
2330-00-542-2039 M149
2330-00-832-8801 M149A1
2330-01-108-7367 M149A2
