MIL STD 810 tested product
67 Series Remote Detonation Systems
RDS-67 Series Military Remote Detonation Systems are field proven Wireless firing systems. These have diverse applications in Explosives disposal, battlefield simulations and in the special operations kit. It is designed with short and as long as battery event upto with 72 hours. Solar panel option can extend the operational time further. Our remote detonation devices have two way encrypted digital communication and can operate in jamming environment. It qualifies on military standard for safe and reliable initiation of explosives remotely and interfaces with standard electric detonators.

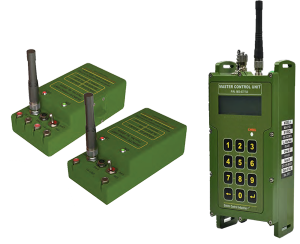

This smart detonation system has a hand held Master Control Unit (MCU) which can communicate with upto 20 Remote firing units (RFU). The system is easy to operate through an LCD driven menu; yet it is very safe. There is provision to use a tether wire if RF function is not required to be used.
Specifications
Safety Features
Key System Features
Specifications
| Configurations | RDS 6711 | RDS 6713 | RDS 6712 |
| Frequency | UHF (429MHz to 436MHz) | UHF | |
| Modulation | FSK | ||
| Operating Range | Line of sight 25 Km, 4-5 Km in Urban/vegetated area | ||
| Number of RFUs | Up to 20 | Up to 2 each can further fire 10 circuits. | Up to 81 |
| Ops Temp. range | -20°C to +55°C | ||
| Store Temp. | -30°C to +65°C | ||
| Humidity | 95% RH at 40°C | ||
| TX power MCU | < 5 watts Typical (wattage can be reduced to user requirement) | ||
| MCU Size mm (L x W x H) | 225 x 110 x 75 max | 220 x 100 x 70 mm | |
| MCU weight | 2.3 Kg (with battery) (depending on backup time & battery size ) | 1.25 Kg with battery | |
| Data entry I/P | 12 Keys Key Pad | ||
| MCU Battery | 12 V, Lithium-Ion rechargeable | 12 Volts NiMH | |
| LCD | 4 x 16 characters, with backlit | ||
| RX Sensitivity | -119dBm | ||
| Weight RFU | 2.1 Kg with battery | 4.4 Kg | 0.8 Kg |
| with lesser backup time weight can be reduced | |||
| Battery RFU | 12 V, LiFeO4 rechargeable | 12 Volts Lithium | |
| Battery Time RFU | 75 Hours (Many months with solar charging option) | Up to 20 hours | 6 hours continuous |
| Antenna Impedance | 50 Ohms | ||
| Available energy | 0.5 Joules | 1.7 Joules | |
| Max line impedance | 60 Ohms | ||
| Firing Circuit | Capacitive Discharge | ||
| Battery charging | Utility Power, Vehicle or Solar | Utility Power and Vehicle | |
| Transit Case | ABS shock/water proof | ||
Safety Features
- Designed for maximum reliability & safety
- Two hands operation
- Arming delay safety timer
- Isolation of Charging Capacitor from firing circuit till detonation command is received
- Unique serial numbers and use of encrypted system
- LEDs indications & LCD based Menu
- Data Encryption secure communication between unique serial numbers
- 5 Min. safety timer for user withdrawal
Key System Features
Our system systems typically have following features which can be tailored to user specifications:-
- Confirmation of status and detonation through Close loop communication.
- Fully EMC tested & built to meet environmental standards MIL STD 810E.
- Operating range customizable 4 to 5 Km in urban areas and 20 to 25 Km in line of sight
- Self-test facility available in both MCU & RFU
- Status update of battery, line impedance and detonation command
- Detonator status : RFU monitors line impedance & load status
- Cancellation of firing command within the programed time
- Both options of wireless and land line communication in single system
- MCU can be programmed to fire sequence of different RFUs
- Self- Piercing rugged wire connectors
- Micro Controller based Battery charging
- Night Illumination.
Remote Firing Device Composition
Master Control Unit (MCU)
The MCU is a hand held, waterproof Aluminum housing having UHF transceiver, along with the micro controller based control circuitry. The MCU is powered up with an internally installed Lithium-Ion battery module.
- Self-test
- Status reporting from RFU (Battery, RF/Land Line, Detonator status)
- Monitor and Program, multiple Remote Firing Units in different sequence.
- Status display (Battery, RF/LL, Detonator) of RFUs
- Programming of firing sequence
- Self- Piercing rugged wire connectors
- Micro Controller based Battery charging circuitry
- Encrypted communication with RFUs
- Night Illumination
Remote Firing Unit (RFU)
The Remote Firing Units are waterproof Aluminum housing containing UHF transceiver along with micro Controller based control circuitry. RFUs are powered up with an internally installed Lithium-Ion battery module. RFUs decode and execute the commands received from MCU and acknowledge the status and results to MCU.
- Self-Test circuitry
- Communication through Microwave or Land Line
- Self- Piercing rugged wire connectors
- Micro Controller based Battery charging circuitry
- Encrypted communication
- LED Indicators (Battery, RF/Land Line, Detonator)
- Provide energy to Detonator
Operational Applications
Special forces Kit
The RDS-67 Series offers encrypted and discreet demolition operations, essential for specialized military units conducting sensitive missions.
Long time operation kit
With battery events lasting up to 72 hours and the option for solar panel extension, the system enables prolonged operations with multiple programmed firings, crucial for sustained demolition operations.
Bomb Disposal Operations
Providing a safe distance to operate, the system aids in bomb disposal operations by approaching IEDs or UXOs with various disposal kits, ensuring the safety of personnel during disposal procedures.
Interfacing with Other Systems
The RDS-67 Series facilitates seamless integration with other systems, offering solutions for interfacing with EOD Robots and disruptors for combating IED attacks, enhancing overall operational capabilities.
Simulation Training
Programmable and versatile, the system can be utilized for battlefield simulation exercises, providing realistic scenarios for training troops and enhancing their operational readiness in diverse environments.
Customization Options
We always remain excited to offer you a range of customization options for our RF initiation system. With our extensive expertise in this technology and a lineup of standard products, we are well-equipped to tailor our systems to meet your specific requirements. Our customization options span across various aspects of our RF initiation system, ensuring that you can fine-tune it to perfectly fit your needs.
Circuit & Software Options
Choose from a variety of circuit and software options, each offering different functions, programming abilities, and encryption features.
Customization of Handheld Unit
Personalize the master control unit according to your preferences and operational needs
Tailoring of Remote Firing Unit
Customize the remote firing unit to optimize its functions and firing circuit options to match your specific applications
Interfacing with Other Systems
Seamlessly integrate our system with other systems for a fully customized solution tailored to your operational environment
Range & Power Transmission
Tailor the system’s range and power transmission capabilities to suit your operational requirements.
Packing Type for Transportation
Choose the packing type best suited for transportation needs, ensuring the system arrives safely and securely at its destination
Battery Type and Technology
Select the battery type and technology employed in the system, including rechargeable options, to ensure optimal performance and longevity.
