Qualified for safety
EOD Power Carts
The IEDD disruptor and EOD render safe tools are mostly powered by electrically initiated power cartridges. We supply a variety of EOD cartridges. Cartridge undergo a well defined qualification process under MIL-D-21625. These are certified for performance, safety and reliability. Each lot of the cartridges is proof tested before final release to the customer. Cartridges are secured in an aluminum container and finally packed in sealed ammunition container.
We also offer to address any specialized cartridges design needs for EOD/IEDD equipment and can provide a cost effective solution.
Safety Specifications
- No Fire Current 0.7 A
- All Fire Current 1.4 A
- Hazard Class: 1.4 S
CT-13, CT-26 & CT-39

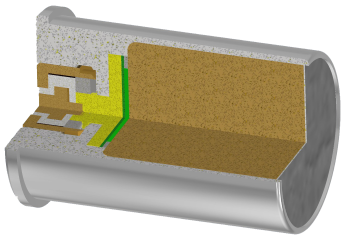

The Cartridge kit CT-13, CT-26 and CT-39 are used with our EAD-13, EAD-26 and EAD-39 Disruptors which are ½ inch, 1inch and 1½ inch bore disruptors. These cartridges are also be used with the legacy Needle, Pigstick and Hotrod disruptors respectively. In a kit, with Cartridge injector, the consumables of firing the disruptor are also provided. These include a Piston and a Closure cap.
These carts have aluminum alloy body, with propellant as its main filling and having an electric primer. The primer does not contain any corrosive or toxic materials and is reliable for log life.
Parameter | Cartridge Injector | ||
Cartridge type | CT13 | CT26 | CT39 |
Diameter | 13mm | 26 mm | 38.5mm |
NEQ | 3 g | 6 grams | 8 grams |
No fire current | 0.4A | 0.4A | 0.4A |
Used with disruptor | EAD-13 (Needle) | EAD-26 (Pigstick) | EAD-39 (Hotrod) |
Size Piston | CT13B (Lx D) 26mm x Ø 14 mm | CT26B (Lx D) 32mm x Ø 27mm | CT39B (Lx D) 34mm x Ø 39 mm |
Size Cap Closure | CT13C (Lx D) 6mm x Ø 14 mm | CT26C (Lx D) 8mm x Ø 29 mm | CT39C (Lx D) 9mm x Ø 40 mm |
UN No | 0323 | ||
Packing | Cartridges are first secured in individual packing and then packed in M2A1 | ||

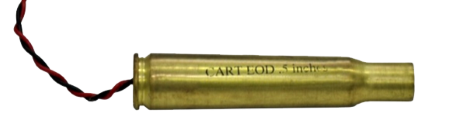

CT-50W and CT-50DCartridge
The CT50W and CT50D are 0.5 inch Cartridge widely used with EOD and IEDD equipment. These are being used with different disruptors and the De-armors. The cartridges are produced in lots and each lot undergoes comprehensive lot acceptance testing to ensure correct and consistent performance.
CT-20 Cartridge
The cartridge CT20 is a 20mm cartridge used with Recoiless disruptor EAD-20. The cartridge is provided with teflon cap installed on the front end which provides a seal when water is filled inside the disruptor.
Packing
The Packing of each carts is with a aluminium round case for each cart firmly secured in thermopore. Each round case is then packed in M2A1 boxes
