Universal Robotic Manipulator

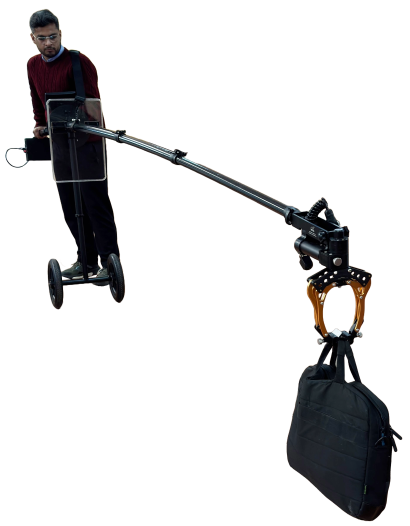

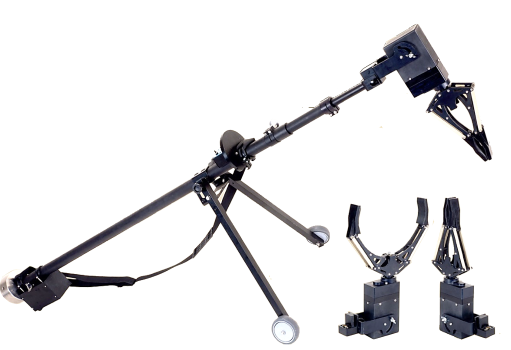

The PKM-02 UXO Manipulator is a lightweight telescopic arm designed to offer a 3-meter standoff distance when the operator is already protected by an EOD suit. The manipulator consists of three sections with locking mechanisms to securely hold the extended position. At the end of the telescopic arm is a universal mount for installation of different tools. A mechanical claw is the important tool installed. A counterweight and battery box are installed on the other end.

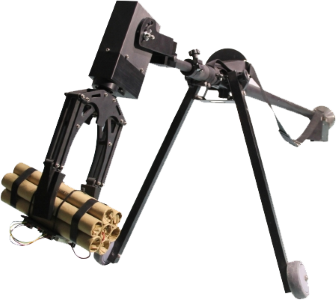

The operator control panel allows precise control over the claw’s opening and closing positions, as well as continuous 360º rotation of the claw. The open and close functions of the claw can be controlled either through visual feedback or an LCD screen. In addition to manipulating suspect objects, the device can also be utilized for positioning explosives charge for detonation.
Key features
- High grabbing capacity
- 3 meters’ stand-off capability
- Rechargeable battery
- Adjustable counter balance
- Can be rotated 360° electrically and manually;
- Height of bracket adjustable with universal wheels which can be lock
Specifications
Specifications
Title | Specifications | Title | Specifications |
Standoff distance | 3 meters | Length of Telescopic Pole | 450 cm |
Lift Capacity | 10 kg | Material | 3 sections of High-strength light-weight carbon fiber / Aluminum alloy |
Claw rotation | 360° continuous 6 RPM on load | Manual adjustment of gripper | 90 Degrees manual |
Claw Opening maximum | 220mm | Assembly Time | 3 minutes |
Battery Working Time | Rechargeable dry gel battery 1 hrs continually | Adjustable trolley | Yes provided |
Camera | HD 1080 P 5.0 Mega digital camera. | Screen | Size : 7 inch digital color screen with sunshade. Photo Format : JPG Storage External SD card: TF card 1 to 64 GB Port: USB 2.0 Voltage: DC :7-24V USB DC:5V AC Adapter: DC 12 V 1 A Built-in Battery : Li-battery 5000 Mah |
